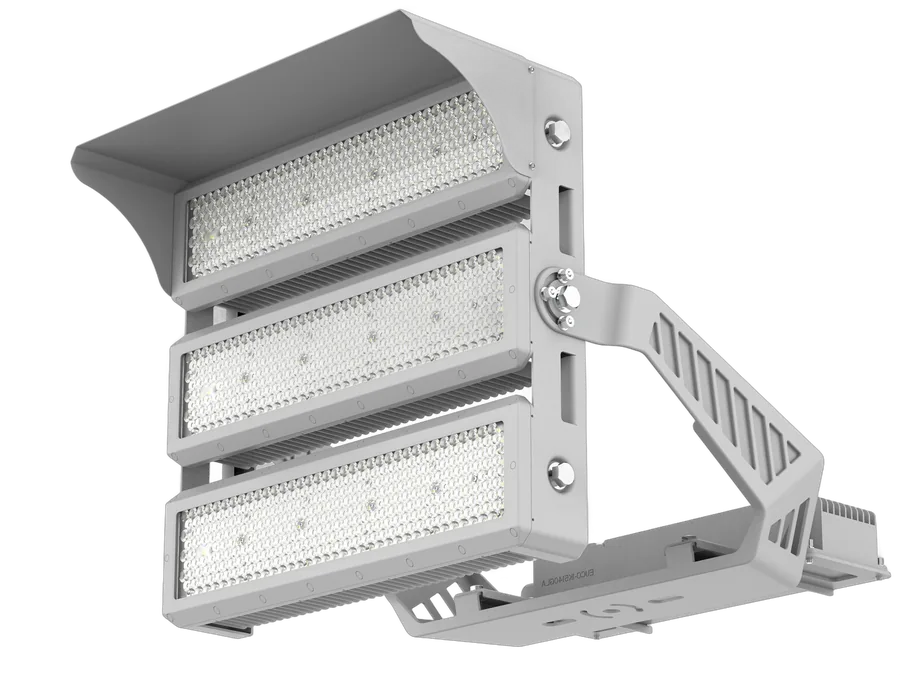

Apollo G3 RGB/RGBA

Flagship platform — custom order, 60-day lead

Apollo G3 RGB and RGBA — color-changing luminaires for facade, architectural, and sports lighting. Six RGB wattages from 600W to 1800W; RGBA configurations to 1800W. 0-10V, DALI, and DMX control with IP66 weatherproof housing.

FLAGSHIP60-day lead · Custom spec
Sports Lighting
25-Year NXS Failsafe™ non-prorated warranty standard · 10-year option available

Day Lead Time

25yr

Non-Prorated Warranty

lm/W Efficacy

IP Rating

Overview / Apollo G3 RGB/RGBA

The Apollo G3 RGB is a color-changing variant of the Apollo G3 platform for facade, architectural, and sports lighting. Six RGB wattages from 600W to 1800W with remote-cabinet drivers; RGBA configurations available — confirm current lineup with EcoSport. Color control via 0-10V driver with DMX / DALI control systems (Art-Net and DMX RDM supported).

Platform Specs

Wattage	RGB: 600W / 750W / 1000W / 1200W / 1500W / 1800W · RGBA: 1200W – 1800W (owner to confirm)
Lumens	Not published for RGB/RGBA models (per factory source spec)
Efficacy	N/A (color-changing; lumens not published)
CCT	N/A (color-changing)
Voltage	AC200-480V
IP Rating	IP66 (NEMA 4X rated weatherproof)
IK Rating	IK10
Surge Protection	20kV SPD standard, 40kV optional
Vibration	3G rated
Dimensions	600W (2-module): 605 x 310 x 314 mm / 1200W-1800W: 700 x 381 x 314 mm
Controls	0-10V / DALI / DMX / Art-Net / DMX RDM (control systems; Synapse DMX / DALI 2.0 at 1800W)
Mounting	Yoke / Knuckle Assembly / Slip Fitter
Operating Temp	-40°F to 122°F
Certifications	UL, DLC, FCC
Rated Life	>100,000 hours (L70)
Warranty	25-Year NXS Failsafe™ Non-Prorated (50,000 hrs) — standard; 10-year non-prorated available as an option
