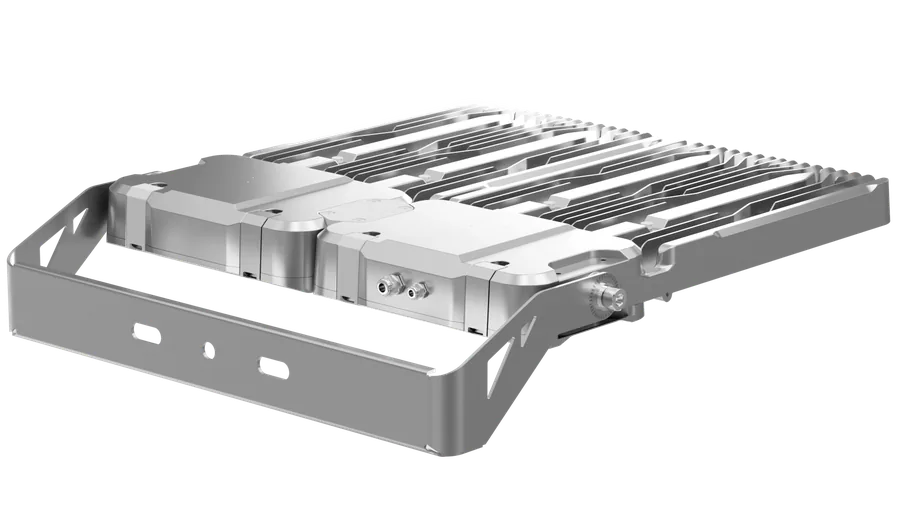

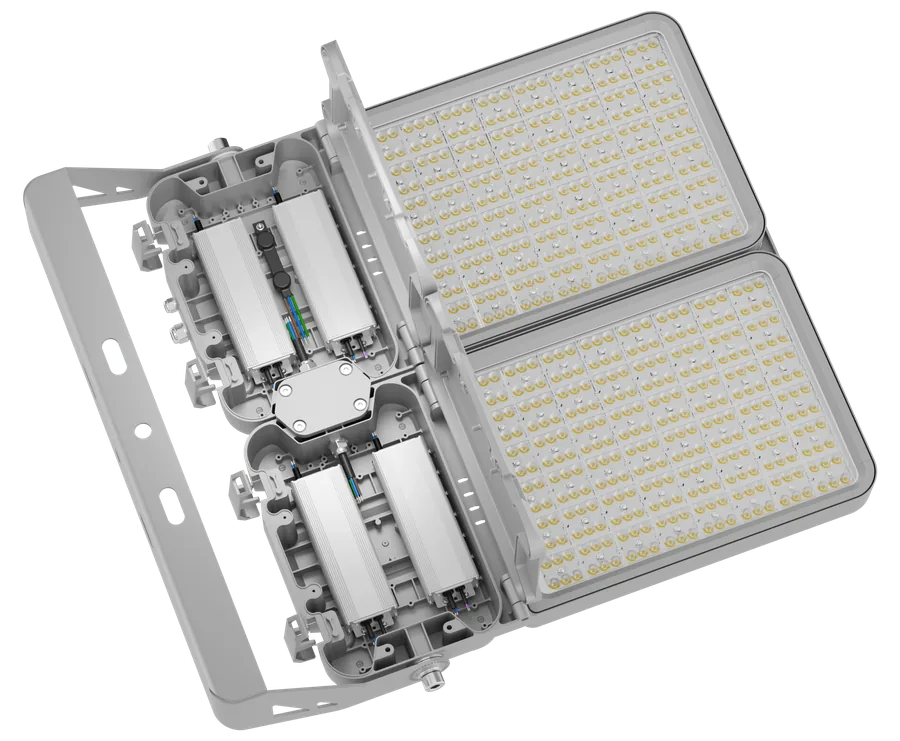

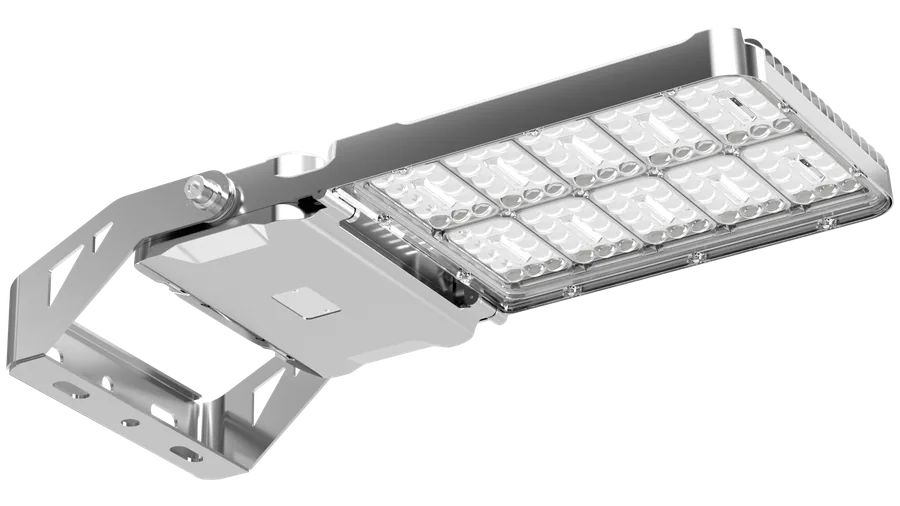

Fusion Series Sports Light
Flagship platform — custom order, 60-day lead
The Fusion Series pairs patented Herculux silicone optics with a dual-lens design that minimizes spill light and eliminates uplight when mounted facing downward — purpose-tuned for tennis and pickleball courts where glare control and even coverage decide playability.…
60
Day Lead Time
25yr
Non-Prorated Warranty
180
lm/W Efficacy
66
IP Rating
Overview / Fusion Series Sports Light
The Grand Slam Series — Fusion Sports Light features revolutionary patented Herculux silicone optics with a dual-lens design that minimizes spill light and eliminates uplight when mounted facing downward. Purpose-tuned for tennis and pickleball courts where glare control and even coverage decide playability. Blue-light-free LEDs reduce light pollution and insect attraction.
Platform Specs
| Wattage | 400W – 1200W |
| Lumens | Up to 204,000 lm |
| Efficacy | Up to 180 lm/W |
| CCT | 3000K / 4000K / 5000K / 5700K |
| Voltage | 100-277VAC or 277-480VAC or 200-480VAC |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Weight | 400W: 34.2 lbs / 1200W: 70.5 lbs |
| EPA | Up to 0.69 m² / 7.44 ft² |
| Controls | 0-10V / DALI / DALI 2.0 / DMX / NEMA / Zhaga |
| Mounting | EA bracket / SF bracket / TR bracket / Round bracket / Universal bracket / U bracket |
| TLCI / Broadcast | >90 |
| Flicker | <1% |
| Operating Temp | -40°F to 122°F |
| Certifications | UL, DLC, 2000-hour salt spray tested |
| Rated Life | >100,000 hours (L70, Ta=30°C@L80) |
| Warranty | 25-Year NXS Failsafe™ Non-Prorated (50,000 hrs) — standard; 10-year non-prorated available as an option |
Spec Sheet / Download
Document
Fusion Series Sports Light — Spec Sheet
Full technical specifications including photometrics, dimensions, and certification data.
