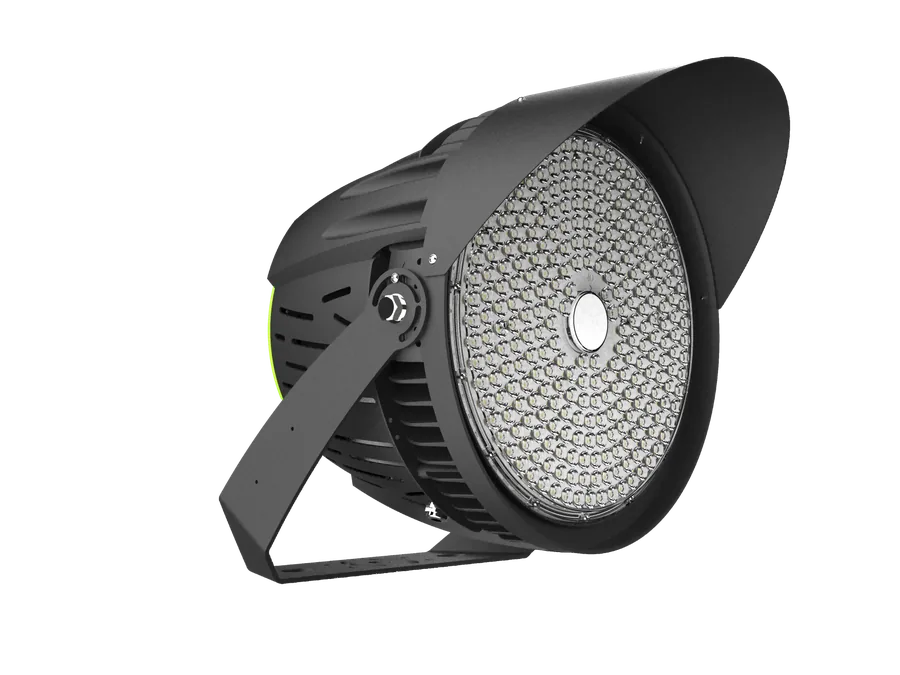

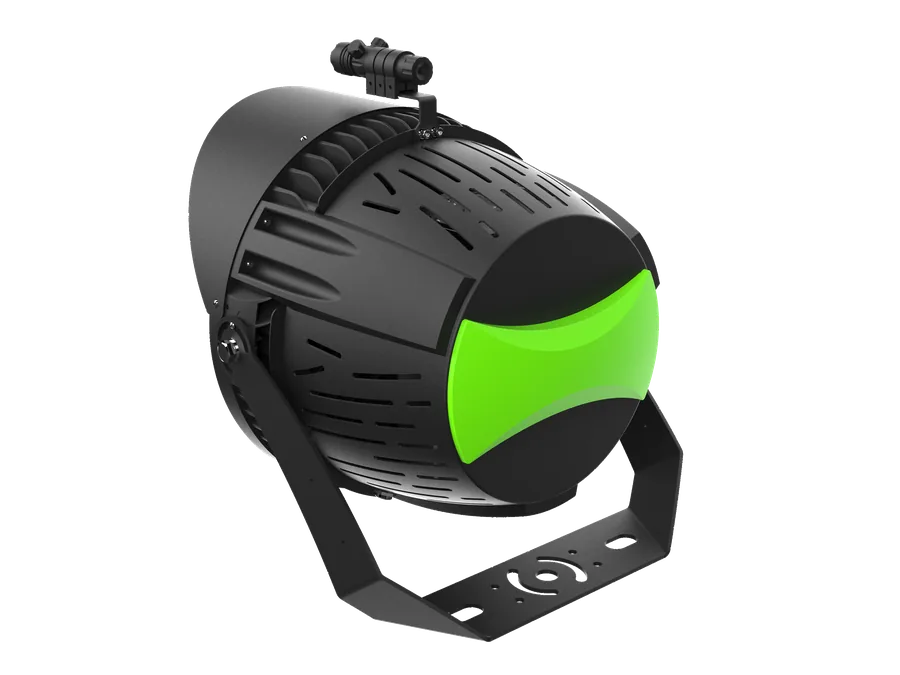

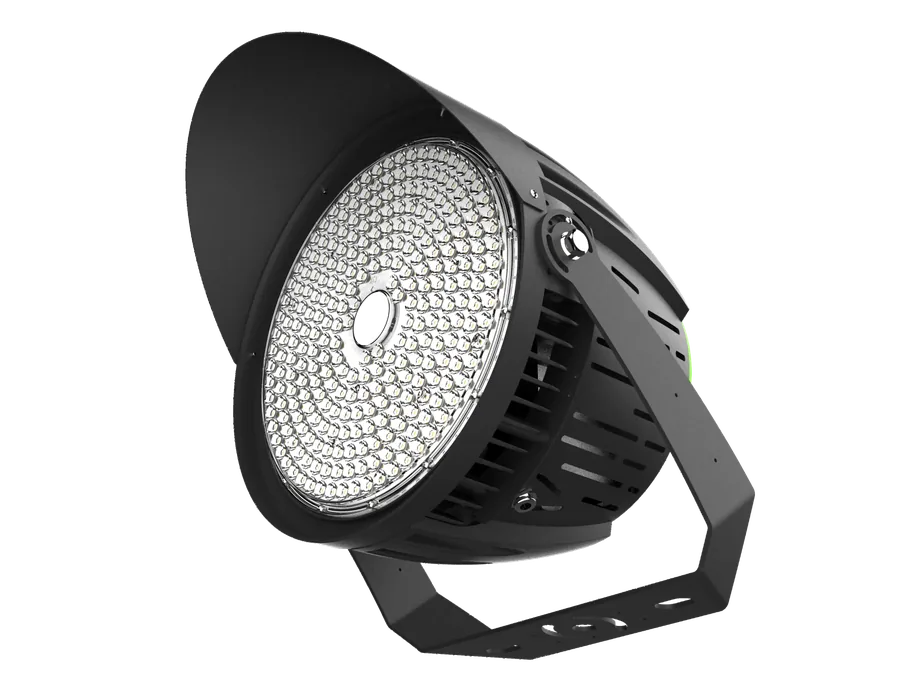

Atlas Scorpius Sports Light
Flagship platform — custom order, 60-day lead
Atlas Scorpius Sports Light — TLCI >90, broadcast-ready >1000fps, HD/4K/8K. Flicker <2%. IK10, IP66, 3G vibration, 10kV surge protection.
60
Day Lead Time
25yr
Non-Prorated Warranty
160
lm/W Efficacy
66
IP Rating
Overview / Atlas Scorpius Sports Light
The Atlas Scorpius combines modern design with premium performance. Patented thermal management improves the luminaire's performance, safety, and lifetime. TLCI >90, broadcast-ready >1000fps, HD/4K/8K, with flicker factor under 2%. IK10 impact rating, IP66, 3G vibration, and 10kV surge protection standard.
Platform Specs
| Wattage | 300W – 1500W |
| Lumens | Up to 228,000 lm |
| Efficacy | Up to 160 lm/W |
| CCT | 4000K / 5000K / 5700K |
| Voltage | 100-277VAC or 200-480VAC |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV standard, 20kV optional |
| Vibration | 3G rated |
| Weight | 300W-600W: 33.1 lbs / 750W-1500W: 50.7 lbs |
| EPA | 300W-600W: 1.27 ft² / 750W-1500W: 2.1 ft² |
| Controls | 0-10V / PWM / Bluetooth / DALI / DMX |
| Mounting | Yoke / Knuckle / Slip Fitter |
| TLCI / Broadcast | >90, broadcast-ready >1000fps, HD/4K/8K |
| Flicker | <2% |
| Operating Temp | -22°F to 122°F |
| Certifications | cULus, FCC |
| Rated Life | >50,000 hours (L70) |
| Warranty | 25-Year NXS Failsafe™ Non-Prorated (50,000 hrs) — standard; 10-year non-prorated available as an option |
Spec Sheet / Download
Document
Atlas Scorpius Sports Light — Spec Sheet
Full technical specifications including photometrics, dimensions, and certification data.
